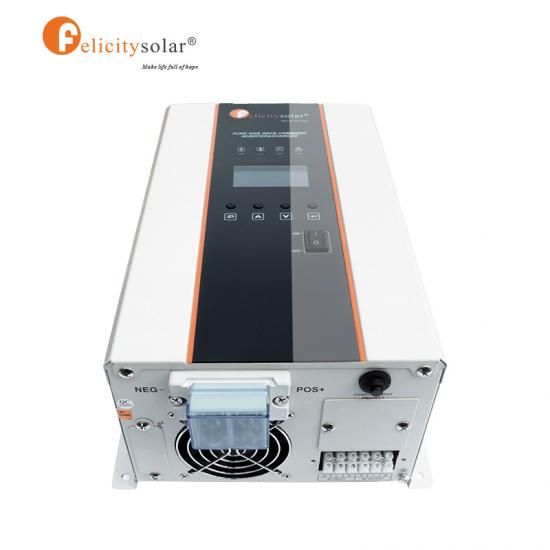

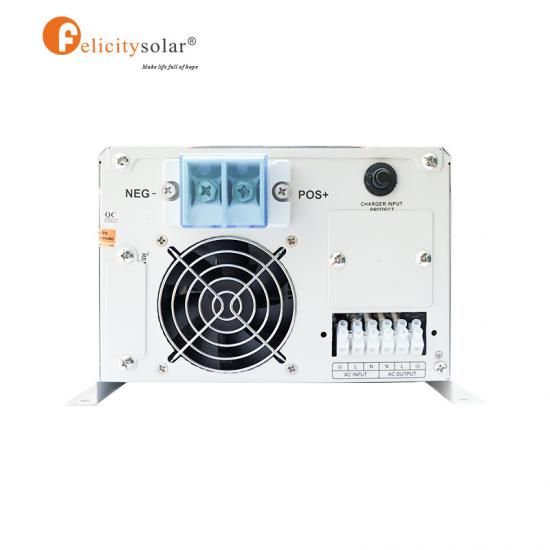

7.5KVA 48V Felicity Low Frequency Inverter Charger
KES 114,000.00
Solar Inverter IVPSModel 75487500VARatedOutputPower(W) 7500va/60000wNorminal DC Input Voltage 48vCharge & Line Mode SpecificationNorminal Inpu
You can pay with MPESA, Cash on Delivery or using your card
- Solar Inverter IVPS
- Model 7548
- 7500VA
- RatedOutputPower(W) 7500va/60000w
- Norminal DC Input Voltage 48v
- Charge & Line Mode Specification
- Norminal Input Voltage 220Vac
- Low Line Disconnect 90Vac±7Vac
- Low Line Re-connect AC Input Range 100Vac±7Vac
- High Line Disconnect 280Vac±7Vac
- High Line Re-connect 270Vac±7Vac
- Output Voltage Waveform As same as input waveform
- Efficiency(Line mode) ≥95%(Rated R load, and battery is full charged)
- Transfer switch Rating AC 40A
- Transfer time(AC to DC) 15ms(typocal)
- Transfer time(DC to AC) 15ms(typocal)
- Pass Through Without Battery Yes
- Input Overload Current AC 40A
- Norminal Output Voltage Dependent on battery type
- Max Charge Voltage DC 40A
- Charge Current Regulation Charge current adjustable:0A,10A,20A,30A,40A
- Breaker Size Dependent on battery type or Self-defined
- Over Charge protection Yes
- Algorithm AGM
- Flood
- Self
- Inverter Mode Specification
- Output Voltage Waveform Pure Sine Wave
- Power Factory 1
- Nominal Output Voltage 220Vac±5%
- Nominal Output Frequency(Hz) 50±0.3Hz/60±0.3Hz(adjustable)
- Over-load Protection(SMPS) 60s@≥150% load; 120s@105%-150% load
- Surge Rating 2*rated power for 5 seconds
- Capable of starting electric Yes
- Output Short Circuit Protection Yes
- Output overlaod current AC 40A
- Nominal DC Input Voltage 48Vdc
- Low Battery Alarm 11.5V/23V/46Vdc@load<50%;11V/22V/44Vdc@load>=50%
- Low battery Recovery 11.75V/23.5V/47Vdc@load<50%;11.5V/23V/46Vdc@load>=50%
- Low DC Input Shut-down 10.75V/21.5V/43Vdc@load<50%;10.5V/21V/42Vdc@load>=50%
- High DC Input Alarm& Fault 15.75Vdc±0.4/31.50Vdc±0.4V/63Vdc±0.4V
- High DC Input Recovery 15.5Vdc±0.4/31.0Vdc±0.4V/62Vdc±0.4V
- Oprating Temperate 0℃ to 40℃
- Range Storage temperate -15℃-60℃
- Dimension(mm) 765*329*298mm
