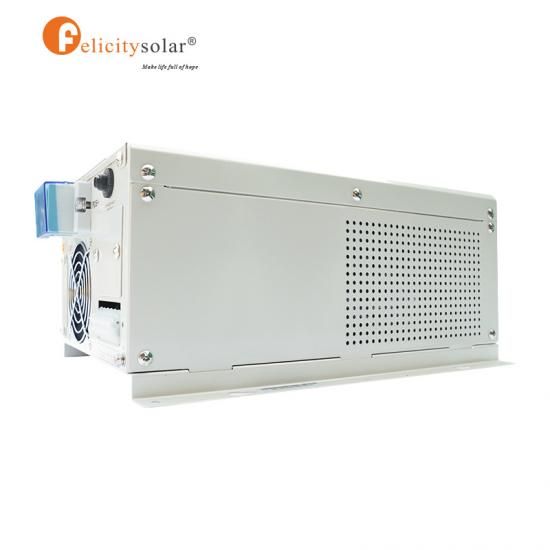

1.5KVA 12V Felicity Low Frequency Inverter Charger

Model IVPS1512
Rated Output Power(VA) 1500VA
Rated Output Power(W) 1200W
Nominal DC Input Voltage 12V
Input Voltage Waveform Sinusoidal(Utility or generator)
Nominal Input Voltage 220Vac
Low Line Disconnect 90Vac±7Vac
Low Line Re-connect AC Input Range
100Vac±7Vac

High Line Disconnect 280Vac±7Vac
High Line Re-connect 270Vac±7Vac
Max AC Input Voltage 280Vrms
Nominal Input Frequency 50Hz/60Hz
Low Line Frequency Disconnect 40±1Hz
Low Line Frequency Re-connect 42±1Hz
High Line Frequency Disconnect 65±1Hz
High Line Frequency Re-connect 63±1Hz
Output Voltage Waveform As same as input waveform
Over-Load Protection (SMPS load) AC 10A
Output Short Circuit Protection AC 10A
Efficiency(Line mode) ≥95% (Rated R load, and battery is fully charged)
Pass Through Without Battery No
Max Bypass Overload Current AC 10A
Utility Charge Mode Specifications
Nominal Input Voltage 220Vac
Input Voltage Range 90~280Vac
Nominal Output Voltage Dependent on battery type
Max Charge Current 18A
Charge Current Regulation 0A~18A
Battery Initial Voltage Circuit breaker
Charger Short Circuit AC 10A
Breaker Size Dependent on battery type or Self-defined
Over Charge Protection Yes
