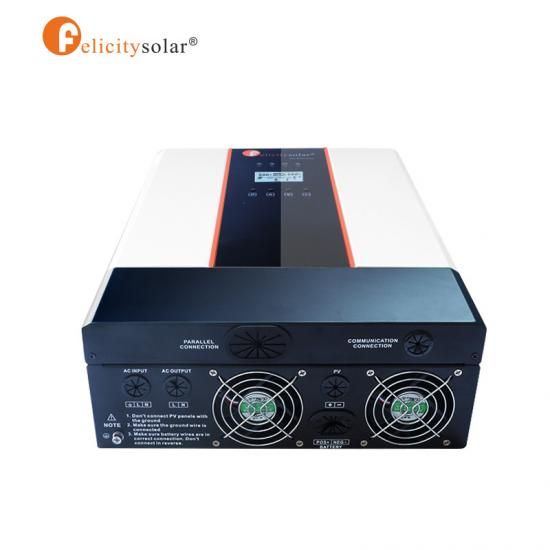

3KVA Felicity Hybrid Inverter 24V, 500V Input

Model IVEM3024
Rated power 3KVA/3000W
Input
Voltage 230V
Selectable Voltage Range 170-280 VAC ( ) 90-280 VAC ( Appliances )
Frequency Range 50 Hz/60 Hz (Auto sensing)
Battery Voltage 24VDC
Output
AC Voltage Regulation 230VAC ± 5%
Efficiency(Peak) >95% ( Rated R load, battery full charged )
Transfer time 10ms typical (UPS); 20ms typical (Appliances)
Waveform Pure sine wave
SOLAR CHARGER&AC CHARGER
Maximum Solar Charge Current 100A
Maximum AC Charge Current 100A
Maximum Charge Current 100A
Rated Power 4000W
Max. PV Circuit Voltage 500Vdc max
PV MPPT Volt Range 120~500Vdc
Min. Battery Volt for PV Charge 24Vdc
OPERATING ENVIRONMENT
Storage Temperature 0°C – 55°C
Humidity -15°C – 60°C
PHYSICAL
Dimension 395 x 295 x 129
Net Weight 10.8KG
