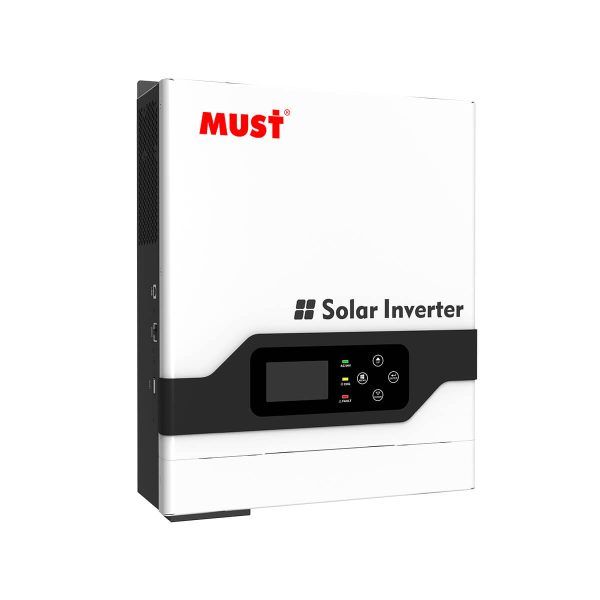

2KVA MUST Hybrid Inverter 24V (PV1800 VPM)

MODEL PV18-2024 VPM
Default Battery System Voltage 24VDC
INVERTER OUTPUT
Rated Power 2000VA / 2000W
Surge Power 4000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 220VAC~240VAC(Setting)
Inverter Efficiency(Peak) 90%~93%
Transfer Time 10ms(UPS / VDE4105) / 20ms(APL)
AC INPUT
Voltage 230VAC
Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE)
Frequency Range 50Hz / 60Hz (Auto sensing)
BATTERY
Normal voltage 24VDC
Floating Charge Voltage 27.4VDC
Overcharge Protection 30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 145VDC
PV Array MPPT Voltage Range 30~120VDC
Standby Power Consumption 2W
Maximum PV Array Power 1500W
Maximum Solar Charge Current 60A
Maximum Efficiency 98%
Maximum AC Charge Current 20A or 30A
Maximum Charge Current 80A
MECHANICAL SPECIFICATIONS
Machine Dimensions (W*H*D)(mm) 272*355*100
Package Dimensions (W*H*D)(mm) 485*393*251
Net Weight(kg) 7.4
Gross Weight(kg) 9.5
OTHER
Humidity 5% to 95% Relativ Humidity (Non-condensing)
Operating Temperature -10°C~50°C
Storage Temperature -15°C -60°C
